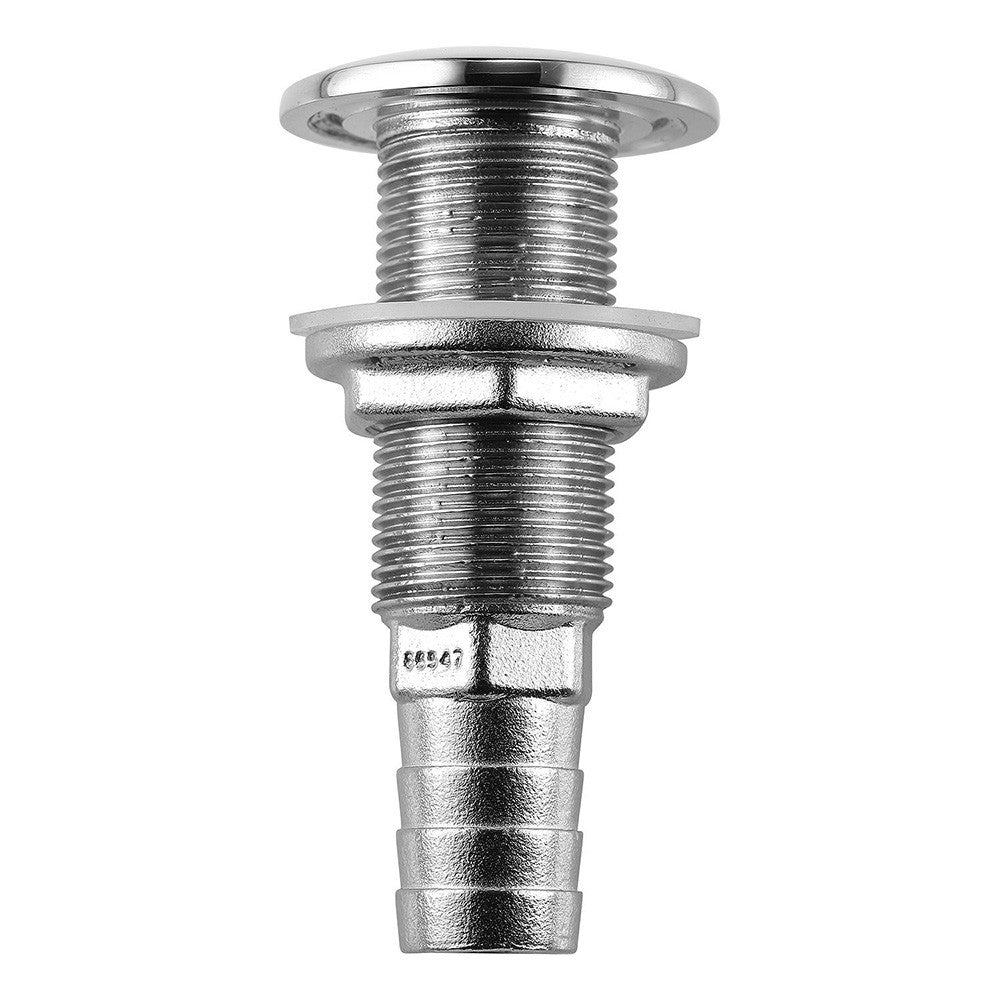

Attwood 3/4" Stainless Thru-Hull – 66547-3
$45.60
Available to order
Not sure? Send your engine model & serial and we'll confirm fit.Ask the shop
Attwood 316 stainless steel straight barbed thru-hull for 3/4 in ID hose.
- Hose size: 3/4 in ID
- Flange diameter: 1-7/8 in
- Thread OD: 1 in
- Thread length: 2 in
- Barb length: 1-1/4 in
- Total length: 3-3/4 in
- Install hole saw: 1-1/8 in
- Thread: 3/4 in NPSM
- Max hull thickness: 1-5/8 in
- Cast from certified enhanced 316 stainless steel, polished to a mirror finish and passivated
- Standard-length model with full-length thread for thick hulls
- Channel under the flange holds a bead of sealant
- Wrench flats or end notch so one installer can tighten from inside the hull
- Barbed tail holds multiple hose clamps
- For installation above the waterline only
Part number: 66547-3
