Blue Sea Systems

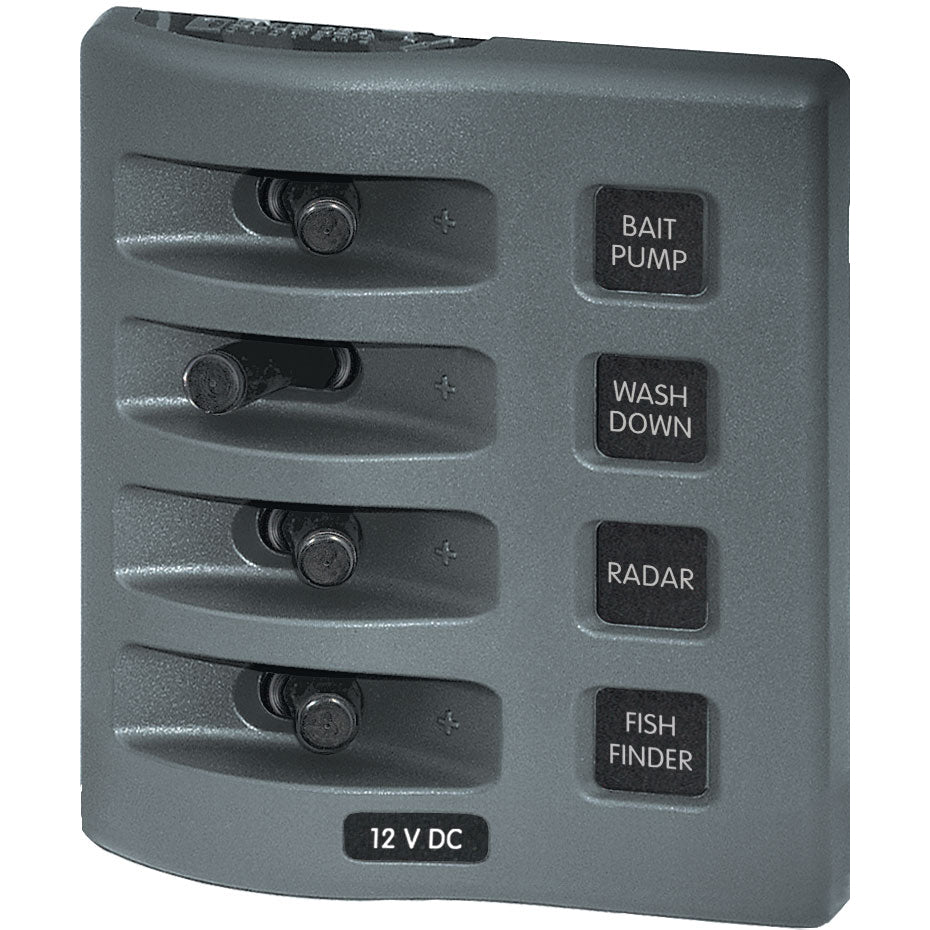

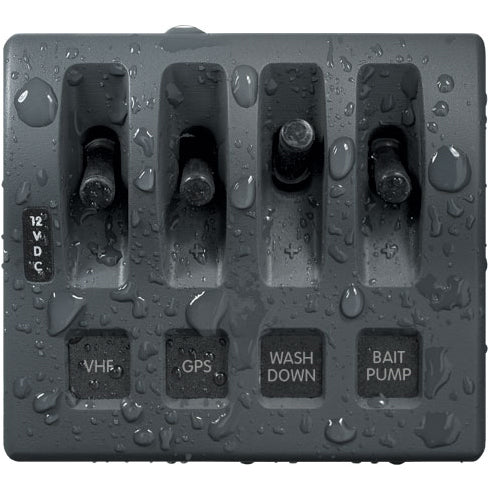

Blue Sea Systems WeatherDeck Waterproof 4-Position Switch Panel – 4305
$69.99
Available to order
Not sure? Send your engine model & serial and we'll confirm fit.Ask the shop
Blue Sea Systems WeatherDeck waterproof 4-position switch panel for boats that already have circuit protection elsewhere.
- Positions: 4
- Voltage: 12V DC or 24V DC
- Max amperage: 15 A at 12V DC per circuit
- Panel cumulative rating: 45 A
- Circuit protection: none (switch-only panel)
- Waterproof, IP67 at the panel front when mounted with the gasket
- Integrated switch guards; mounts in four orientations
- Snap-on UV-stabilized faceplate hides the mounting screws
- Material: reinforced polycarbonate
- Dimensions: 4.30 in H x 3.88 in W x 2.50 in D
- Weight: 0.90 lb
Part number: 4305
