Blue Sea Systems

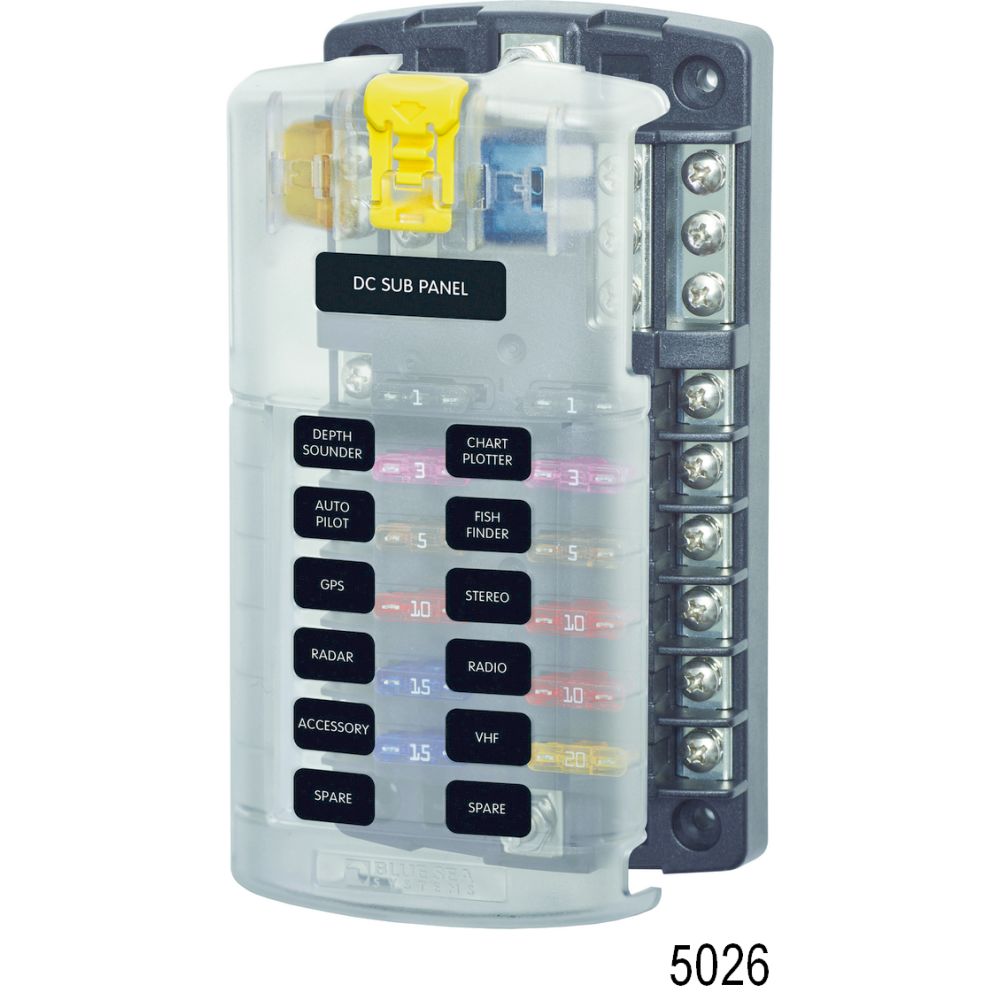

Blue Sea Systems ST Blade 12-Circuit Fuse Block with Negative Bus and Cover – 5026
$69.99
Available to order
Not sure? Send your engine model & serial and we'll confirm fit.Ask the shop
Blue Sea Systems ST Blade fuse block with 12 circuits, negative bus and cover.
- Circuits: 12
- Positive and negative buses with #10-32 studs
- Can be used for 24-hour circuits
- Cover meets ABYC/USCG insulation requirements, has a push-button latch and holds two spare fuses
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork terminals
- Accepts ATO and ATC blade fuses (fuses sold separately)
- Max amperage: 100 A per block, 30 A per circuit
- Max voltage: 32V DC
- Mounts with #8 screws
- Screw terminals: #8-32 with captive star lock washers
- Weight: 0.75 lb
In the box: Cover, 20 write-on circuit labels.
Part number: 5026
