Blue Sea Systems

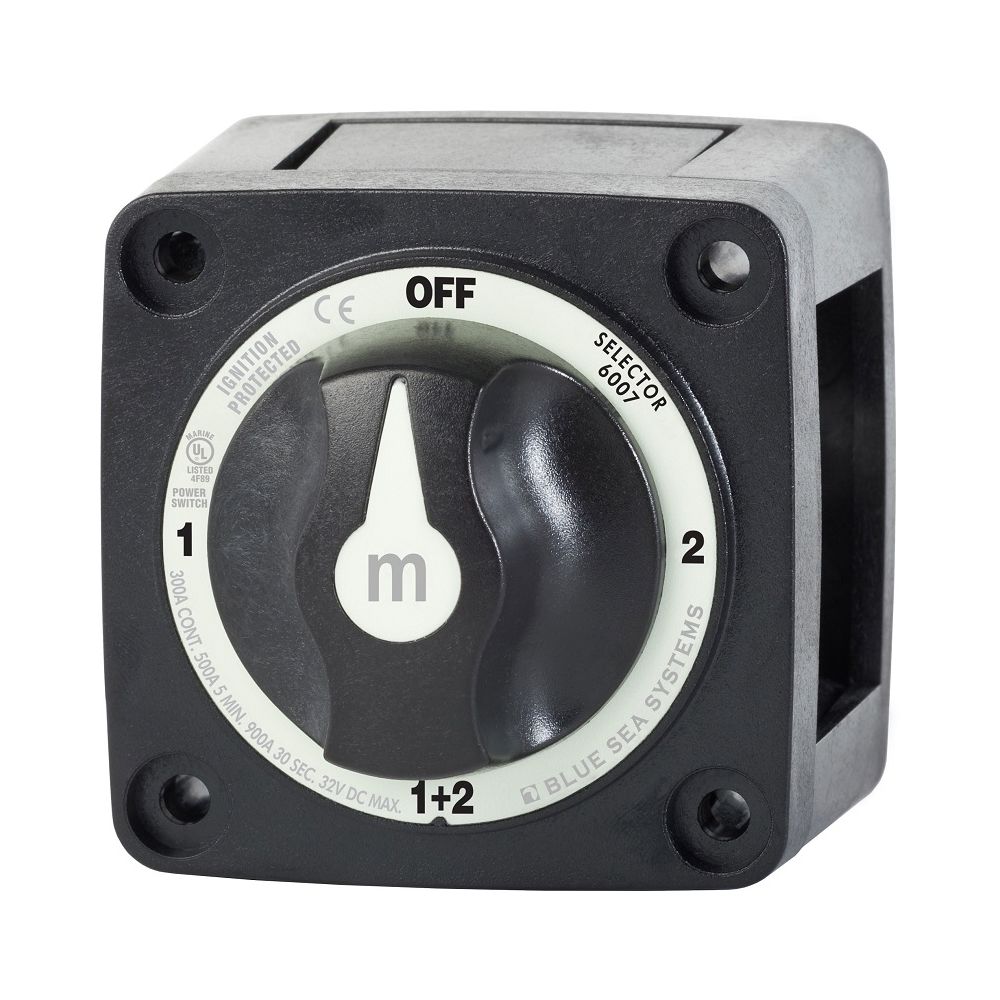

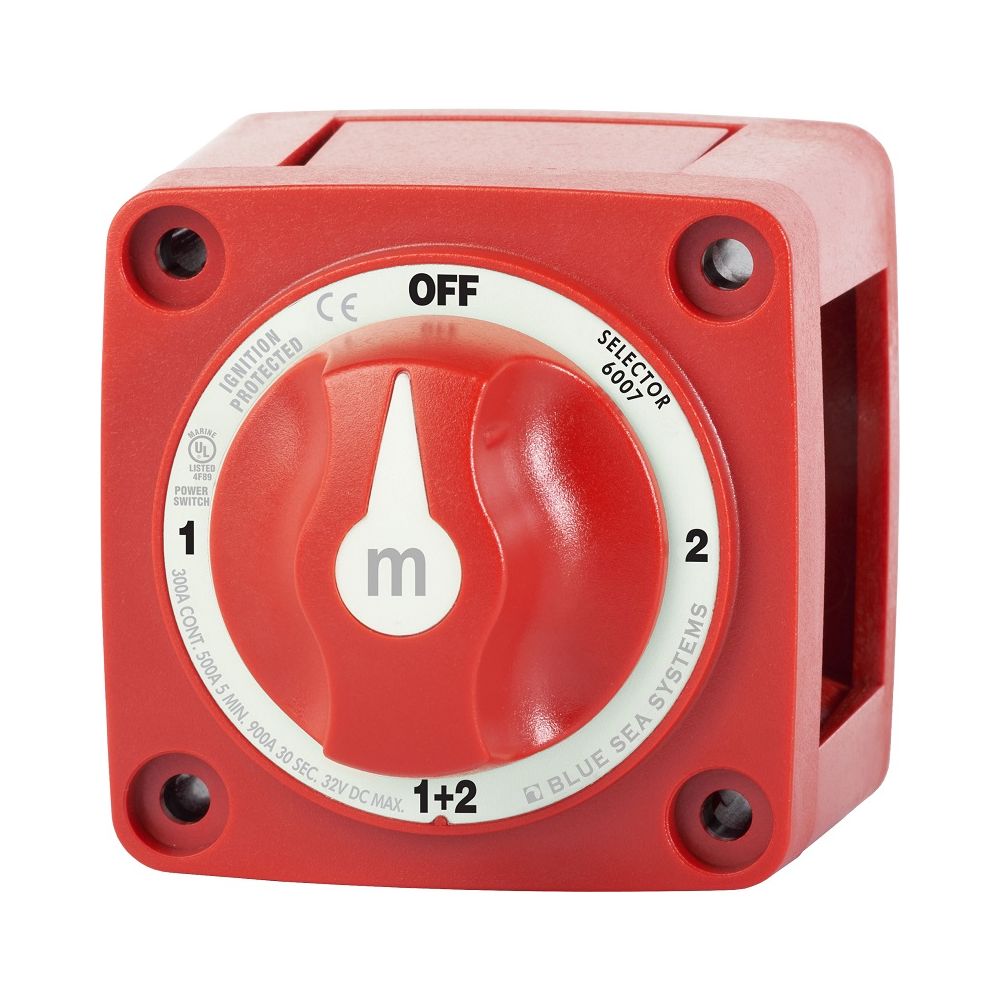

Blue Sea Systems m-Series Mini Selector Battery Switch – 6007
$52.99
Available to order
Not sure? Send your engine model & serial and we'll confirm fit.Ask the shop
Blue Sea Systems m-Series mini selector battery switch for outboard and small inboard boats, with a removable knob.
- Positions: 4 (selects either battery bank or combines both)
- Battery inputs: 2
- Continuous rating: 300 A
- Intermittent rating: 500 A for 5 minutes
- Cranking rating: 900 A for 30 seconds
- Max voltage: 32V
- Cable size to meet ratings: 4/0 AWG
- Terminal studs: 3/8 in, tin-plated copper, 7/8 in long
- Mounting holes: 1/4 in
- Make-before-break switching; ignition protected for gasoline engine rooms
- Surface, flush or rear-of-panel mounting
- Dimensions: 2-7/8 in L x 2-7/8 in W x 3-1/8 in D overall
In the box: Snap-out isolator covers, labels.
Part number: 6007
