Bob's Machine Shop Kick-Back w/Versa Jack Plate

Bob’s Kick-Back Plate

The best jack plate available meets the KickBack plate to form the new Versa KickBack Jac!  Bob’s jack plate with 6″ adjustable manual jackplate with 1.5″ built in structure lift offering a total of 7.5″ total lift!  Delrin bushing throughout provide long life of smooth sliding, and pivoting.  Navigate the shallows, and if you encounter a submerged object, you can jack up your motor and idle over allowing your motor to KickBack and prevent costly damage to the lower unit.

Features :

1. Patented design
2. 6″ Setback
3. Locking pins for reverse
4. Grease able pivot points and slide plate area
5. No spring or chains
6. Tension rods
7. 30 deg of tilt
8. Delrin rollers and bearings for smooth operation; No need for chains or spring
9. Motor tether attachment point for safety

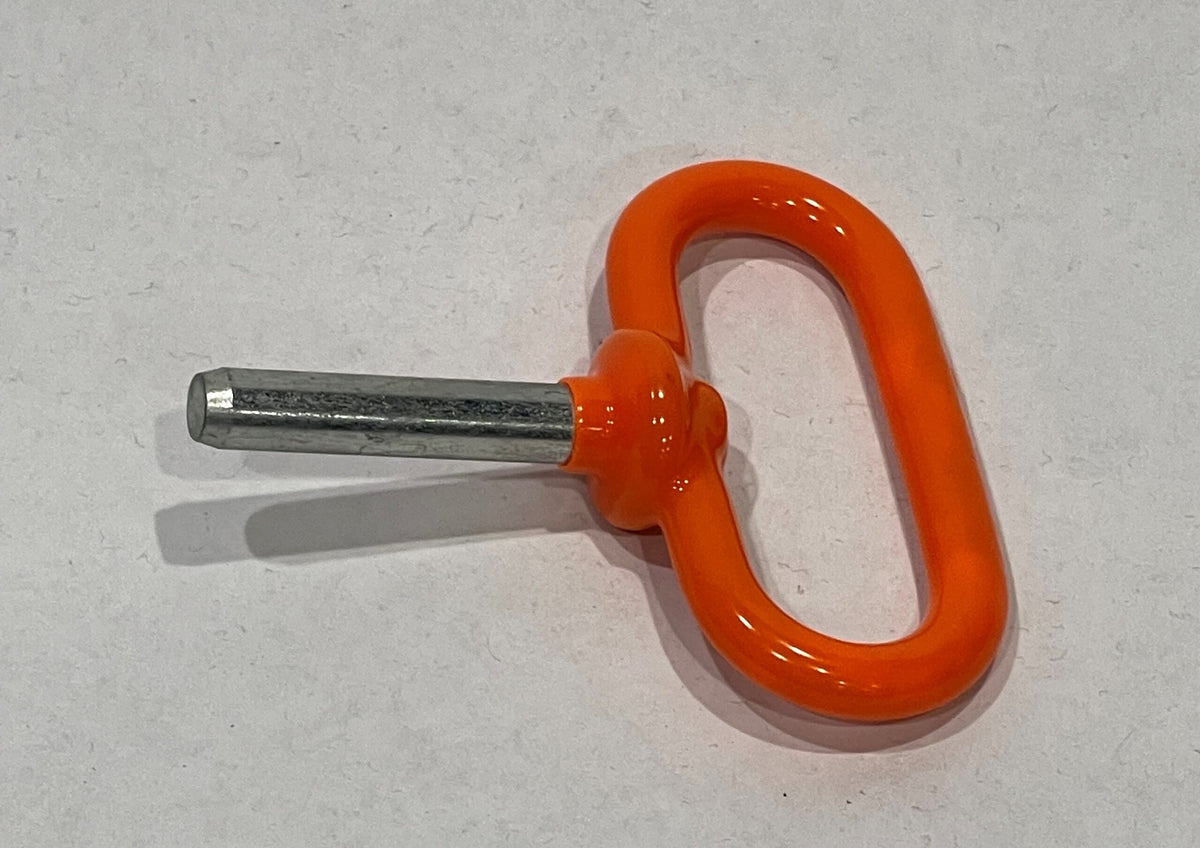

10. Locking pins to prevent plate from kicking out in reverse or trailering
11. Grease able pivot points – automotive zerk fittings
12. Rated up to 150 HP motors – BIA bolt pattern
13. Unit weight : 48 LBS
14. Limited Lifetime Structure Warranty against manufacturing defects

WARNING: This unit is rated for outboard motors up to a maximum of 150 H.P. Do not encounter obstructions at speeds over 5 M.P.H and only in the forward direction. It is not designed or intended to encounter obstructions while the boat is being operated in the reverse direction.

Specifications

• Shipping weight: 65 lbs
• Package dimensions: 23 × 19 × 12 in
