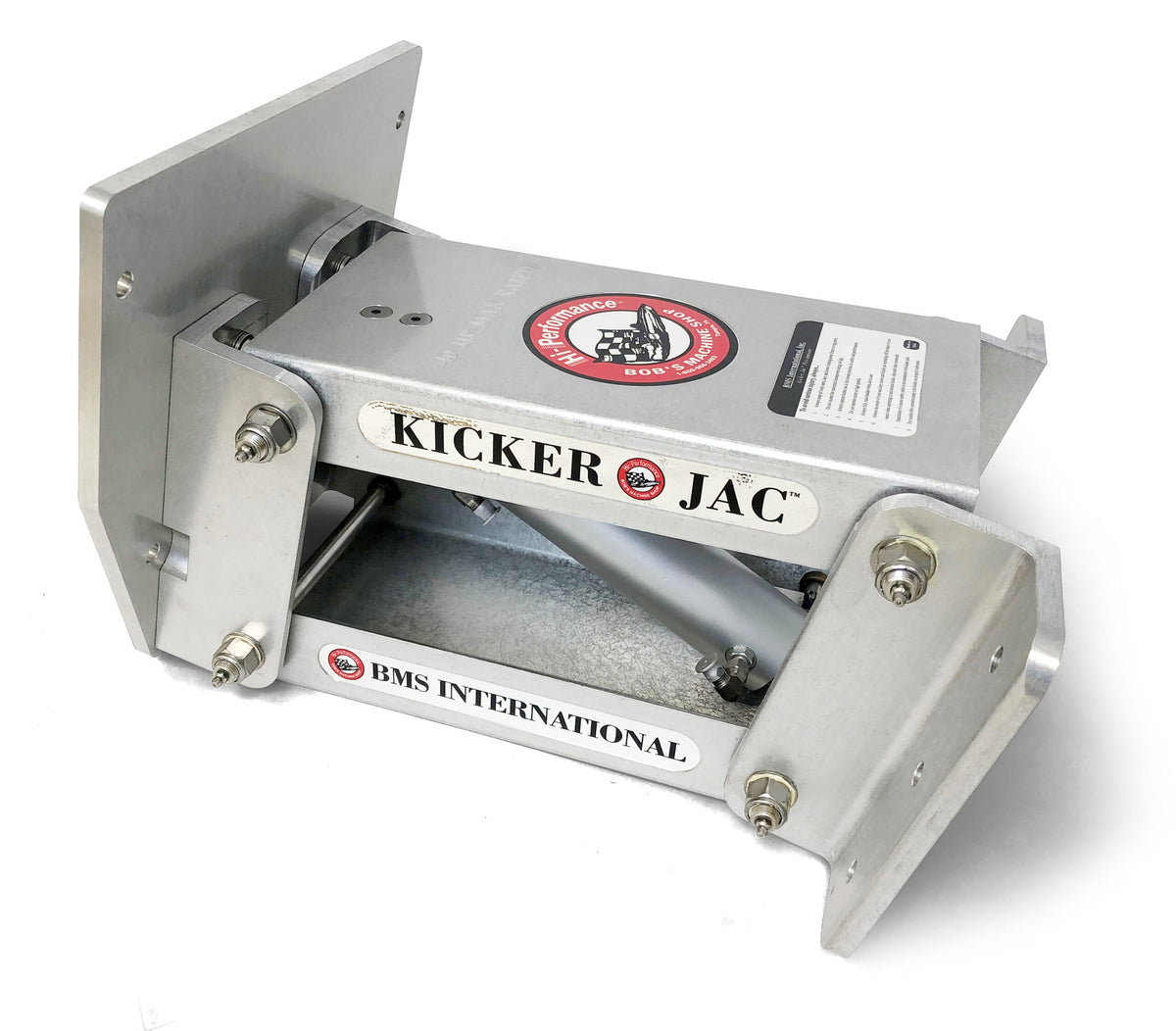

Bob's Machine Shop Kicker Jac

Bob’s Machine Shop’s Kicker Jac

• Rated to 40HP 4 strokes

• Patented design has 16 inch (40.6 cm) lift

• Custom hose lengths are available

• Through hull fittings available

• 5 year warranty on hydraulic pump

• Optional wireless control

• Complete package including the kicker jac, hydraulic pump, 10′ hoses, wiring harness, switch and fluid.

• Limited lifetime warranty against structural defects

• Weighs 48 lbs (21.7 KG) plate weight

With a maximum engine rating of 40 hp, BMS’s hydraulic kicker jack plate provides slow-speed power for cruisers, auxiliary power for sailboats and trolling power for fishermen. Sailboat skippers will appreciate the jack plate’s ability to reduce engine drag while under sail.

For economy, powerboaters can fire up their kicker for no-wake zones, slow cruising or when navigating shallow backwaters. And, the jack provides anglers with the option of using just one motor for trolling and main power.

The kicker jack is built with 6061 T-6 aircraft-grade aluminum to ensure high strength with minimal weight.
All of Bob’s Machine’s hydraulic jack plate motors are mounted inside the boat for long life and easy maintenance.
An optional wireless control kit allows the skipper to operate the jack plate remotely with a small key fob from anywhere on the boat.

Specifications

• Shipping weight: 72 lbs
• Package dimensions: 23 × 19 × 17 in
