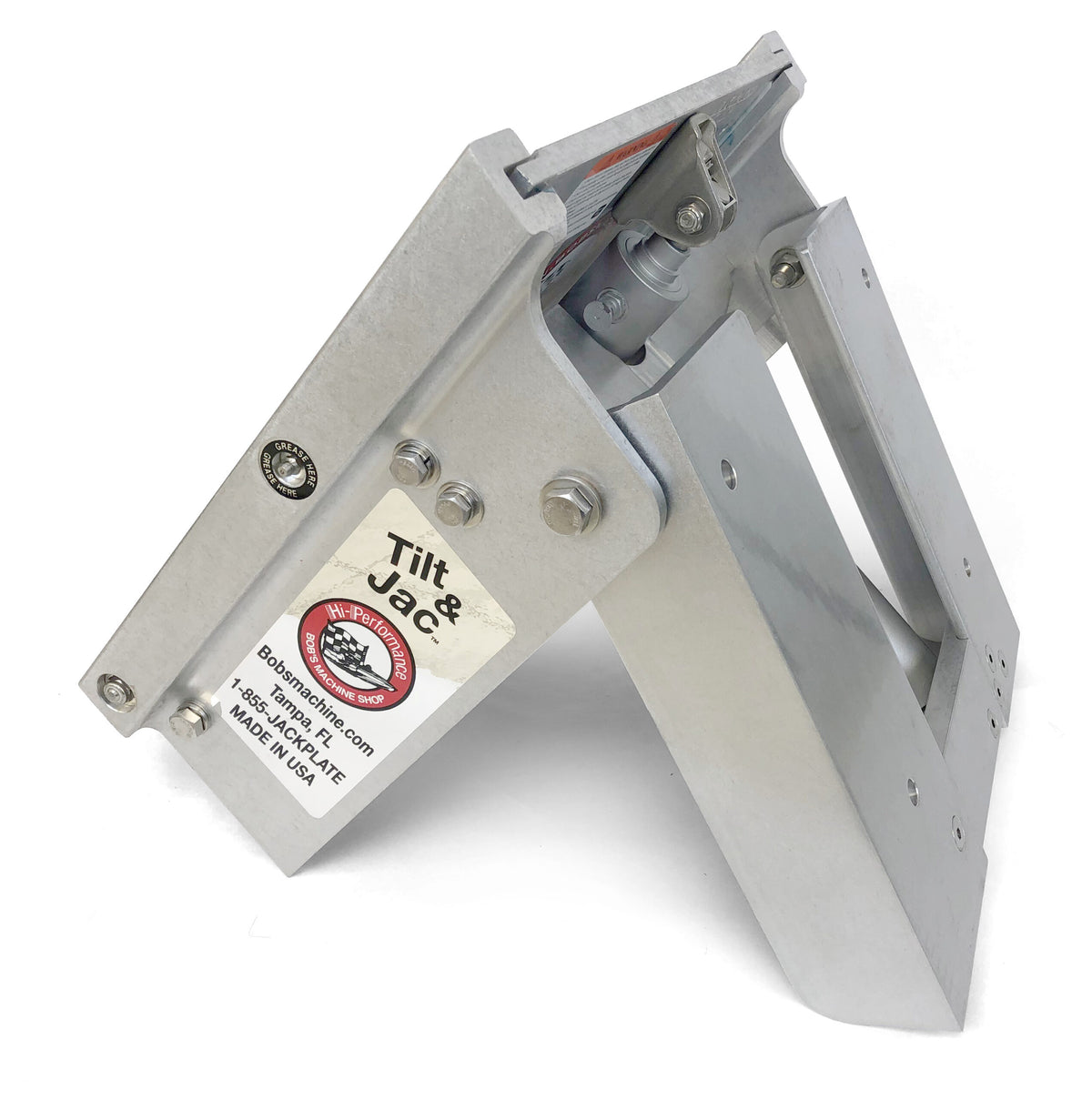

Bob's Machine Shop Tilt and Trim Action BIA Bolt on - 40hp and up
New Action series Tilt and Trim, all in one unit! Easy rigging and tons of benefits!
For outboard owners without factory tilt and trim, Bob’s Machine Shop has a solution. Designed for motors up to 115hp (BIA Bolt Pattern), BMS’s hydraulic Tilt & Trim can provide increased performance, better handling and less hassle raising and lowering the motor at the launch ramp.
The Tilt & Trim allows boat operators to trim the boat for a smoother, drier ride. When fully trimmed in, it provides a faster start and quicker on-plane time. After reaching plane, the boat can be optimized for best running angle by trimming the tilt up to its maximum of 65 degrees. 6-inch setback is standard.
BMS’s Tilt & Trim is easy to install. It comes with wiring harness, control switch and carries a limited lifetime structural warranty.
Includes trim plate, wiring harness, relays, rocker style switch
Limited Lifetime Structure Warranty against manufacturing defects
3 Year Action Pump Warranty
Transom Weight – 43lbs
Call for other powder coating and hydrographic options!
Specifications
- Shipping weight: 50 lbs
- Package dimensions: 23 × 19 × 12 in
