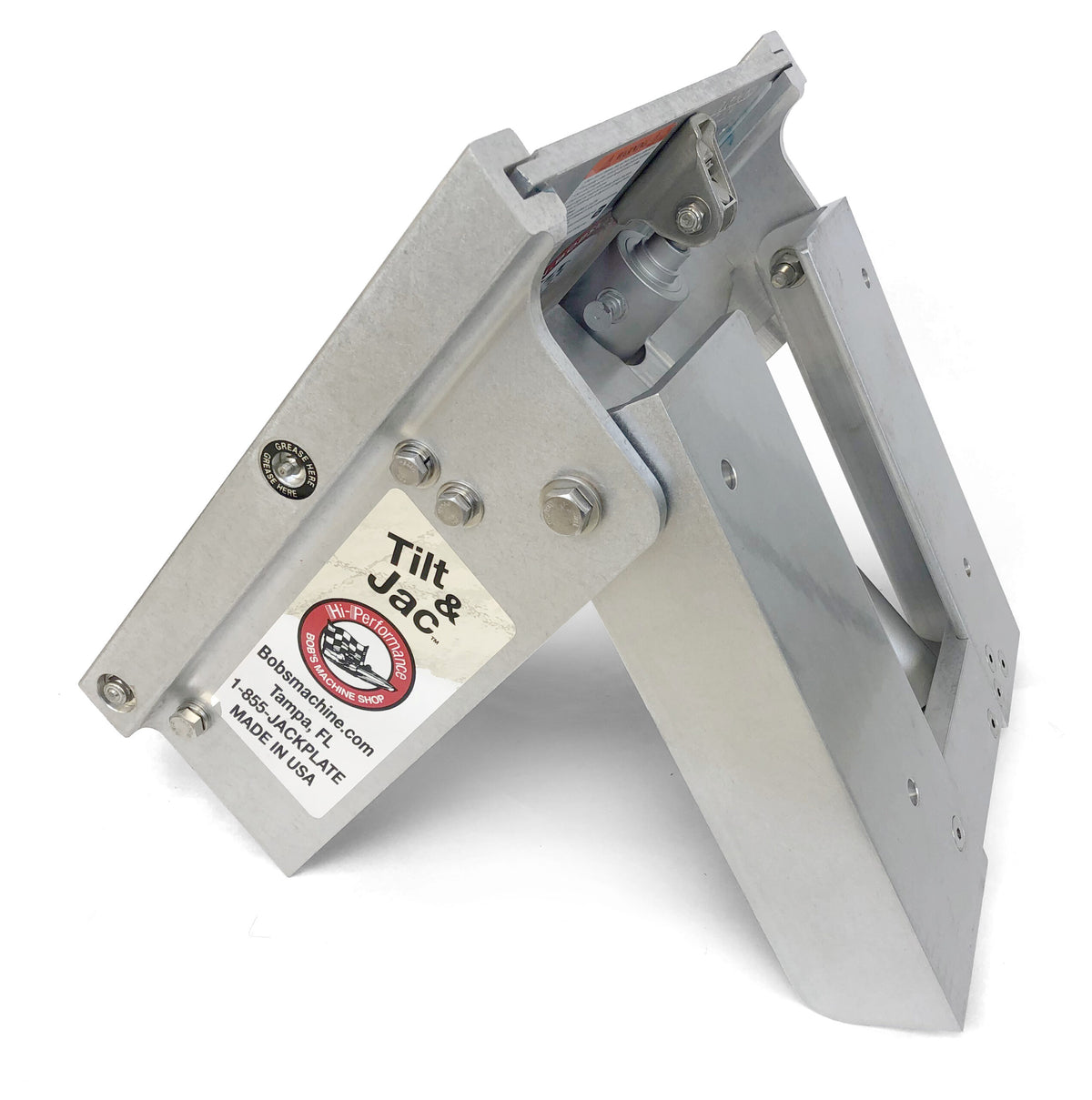

Bob's Machine Shop Tilt and Trim Action Clamp on 35hp and below
New Action series Tilt and Trim, all in one unit! Easy rigging and tons of benefits!
For outboard owners without factory tilt and trim, Bob’s Machine Shop has a solution. Designed for motors up to 30hp(clamp on style only), BMS’s hydraulic Tilt & Trim can provide increased performance, better handling and less hassle raising and lowering the motor at the launch ramp.
The Tilt & Trim allows boat operators to trim the boat for a smoother, drier ride. When fully trimmed in, it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for best running angle by trimming the tilt up to its maximum of 65 degrees. A 5-1/2 inch setback is standard.
The hydraulically operated Tilt & Trim will accommodate clamp-on motors, not standard BIA bolt pattern style. Call for questions.
The Over all mounting dimensions, which are: 10″ wide by 11.5″ length
BMS’s Tilt & Trim is easy to install. It comes with wiring harness, control switch and carries a limited lifetime structural warranty.
Includes trim plate, wiring harness, relays, rocker style switch
Limited Lifetime Structure Warranty against manufacturing defects
3 Year Action Pump Warranty
Stackable spacers for the clamps included standard!
Call for other powder coating and hydrographic options!
Specifications
- Option: Color?: Silver
- Shipping weight: 35 lbs
- Package dimensions: 16 × 14 × 16 in
