Garmin
Garmin VHF 315 Marine Radio – 010-02047-00
$849.00
Available to order
Not sure? Send your engine model & serial and we'll confirm fit.Ask the shop

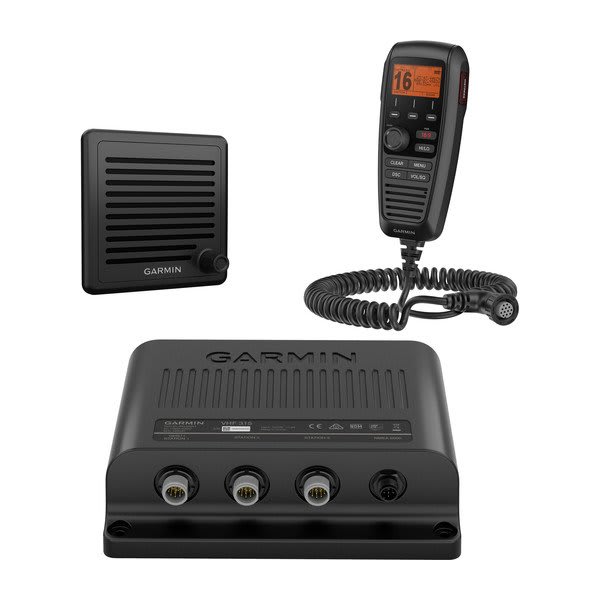

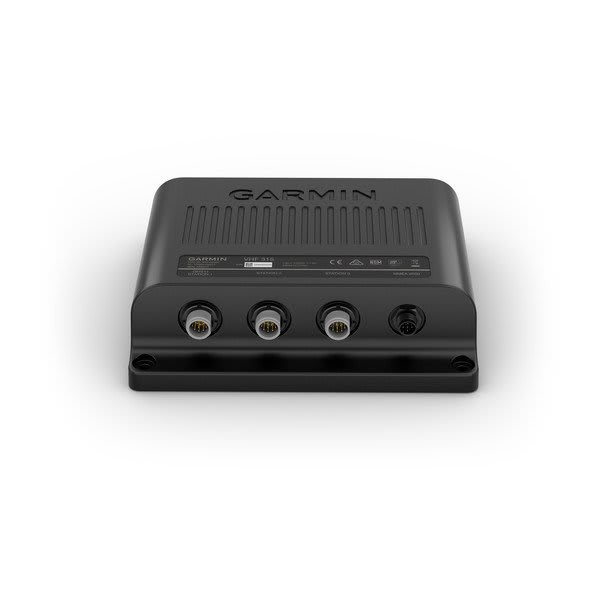

Garmin VHF 315 modular 25 W Class D DSC marine radio with GHS 11 handset and active speaker.
- 25 W transmit (23-25 W high, 0.7-1 W low at 13.6V)
- Class D DSC; all U.S., Canadian and international channels plus 10 NOAA weather channels
- Built-in GPS receiver (requires external antenna)
- Intercom between up to 3 stations
- Two-way 30 W hailer
- NMEA 2000 and NMEA 0183
- Water rating: IPX7
- Operating voltage: 9.6-16V DC
- Current draw: 350 mA standby, 600 mA receive, 6 A max transmitting
- Dimensions: 8.1 in x 7.1 in x 2.4 in
- Weight: 3.4 lb
In the box: VHF 315 marine radio, GHS 11 handset, cradle for GHS 11, active speaker, power cable, deck cable (about 33 ft), microphone hanger, mounting hardware, documentation.
Part number: 010-02047-00
