Garmin

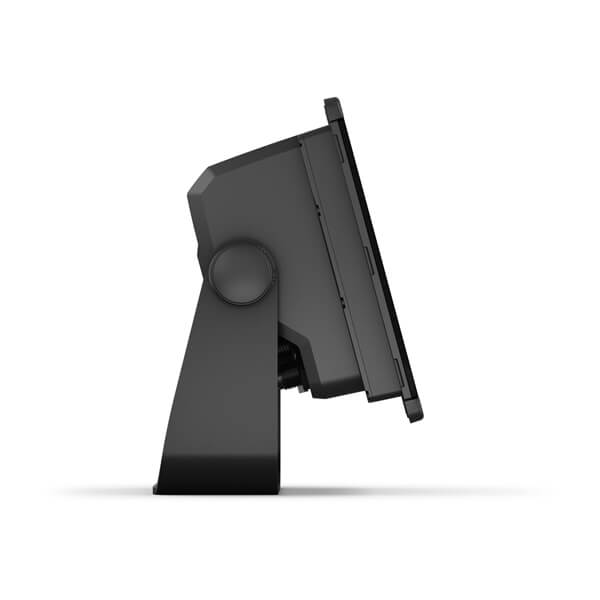

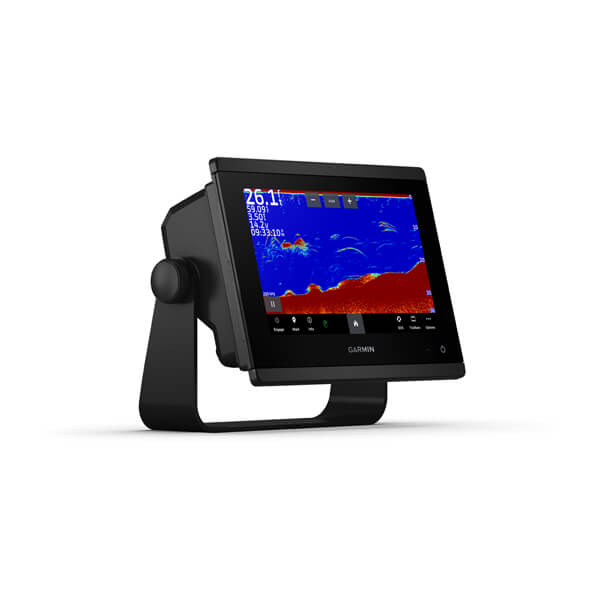

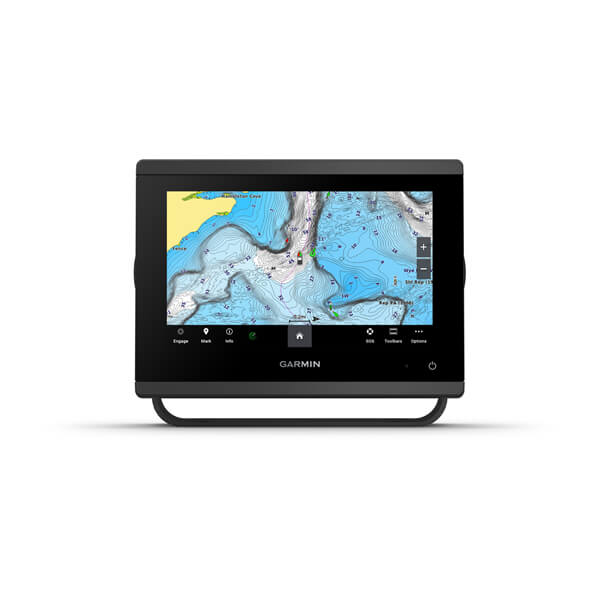

Garmin GPSMAP 743xsv with US & Canada Navionics+ Charts – 010-02365-61
$1,299.99
Available to order
Not sure? Send your engine model & serial and we'll confirm fit.Ask the shop
Garmin GPSMAP 743xsv 7 in touchscreen chartplotter/sonar combo with US and Canada Navionics+ charts.
- Screen: 7 in diagonal touchscreen, 1024 x 600 WSVGA
- Display area: 6.1 in x 3.5 in
- Unit dimensions: 7.6 in x 5.5 in x 2.9 in
- Mounting: flush, tilt (bail) or surface
- Preloaded Garmin Navionics+ US and Canada coastal charts and inland maps with Auto Guidance+ (for planning only)
- Built-in Ultra High-Definition SideVü and ClearVü scanning sonar; supports 1 kW CHIRP traditional sonar (transducer not included)
- NMEA 2000 and NMEA 0183 networking
- Garmin SailAssist features (wind transducer sold separately)
In the box: GPSMAP 743xsv chartplotter, preinstalled microSD card, power cable, NMEA 2000 T-connector, NMEA 2000 drop cable (about 6-1/2 ft), 8-pin transducer to 12-pin sounder adapter cable, bail mount kit with knobs, flush mount kit with gasket, protective cover, trim piece snap covers, documentation.
Part number: 010-02365-61
