Johnson Pump

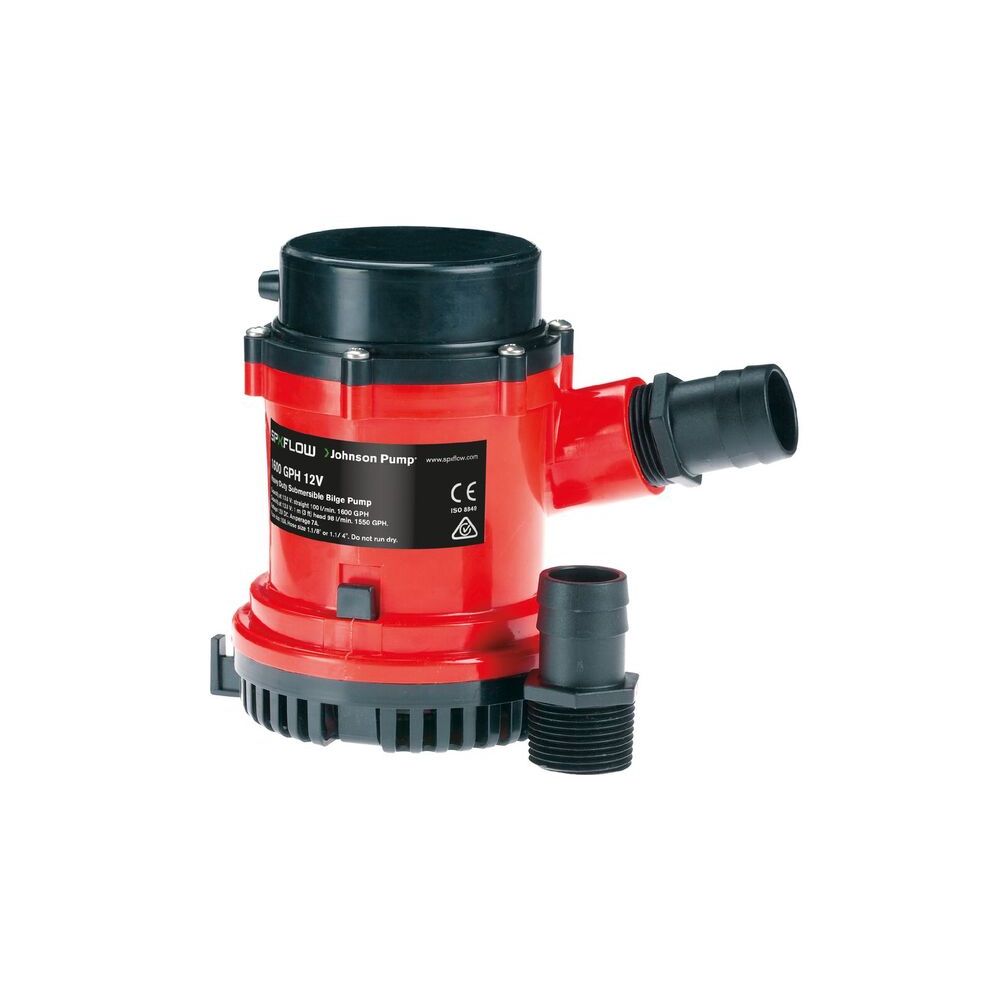

Johnson Pump 1600 GPH Bilge Pump – 16004-00
$186.93
Available to order
Not sure? Send your engine model & serial and we'll confirm fit.Ask the shop
Johnson Pump 1600 GPH heavy-duty submersible bilge pump, 12V (manual; add a float switch for automatic operation).
- Flow: 1600 GPH open flow, 1550 GPH at about 3 ft of head (rated at 13.6V)
- Voltage: 12V DC
- Amp draw: 7 A
- Fuse size: 10 A
- Hose size: 1-1/8 in and 1-1/4 in
- Wire size: 16 ga
- Max diameter: 4-1/4 in
- Max height: 5.86 in (about 5-7/8 in)
- Weight: 2.75 lb
- Liquid-cooled 12-pole double ball bearing motor with lip seal
- Snaps into a universal mounting bracket/inlet screen, so it replaces most similar bilge pumps
In the box: Removable check valve.
Part number: 16004-00
